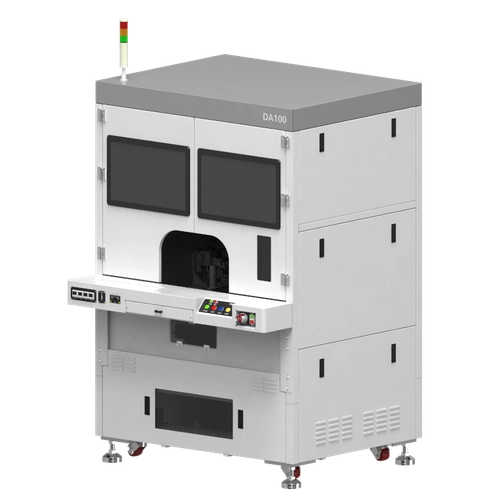

Precise Active Align
Automatic Machine Teaching
High UPH
– Exclusive technology(Patent)
– Using DFOV(Diagonal Field Of View) and resolution value for the best focusing
– Handler : 2 Head, 6 Picker
– Tester : 2 Para, 4 Shuttle
– Available one para maintenance(The other operation)
– A/A before/after dispensing
– Automatic machine teaching function(Vision technology)
– Precise initial setup for A/A
– Easy maintenance
– Internalized smart components high tech & reasonable price
– FP grabber board : Faster than USB type, Optical fiber
– FFU/Air curtain/Air knife function
– FFU : Process air circulation to keep clean inside of machine
– Air curtain & Air knife(Tray ionizer) : No allow any dust or foreign substance to be on DUT
– Strict particle-criteria
– Reduce the cost to conversion(50%)
– Shortening of conversion period
(Twice as faster than competitor)
| Item | Description |

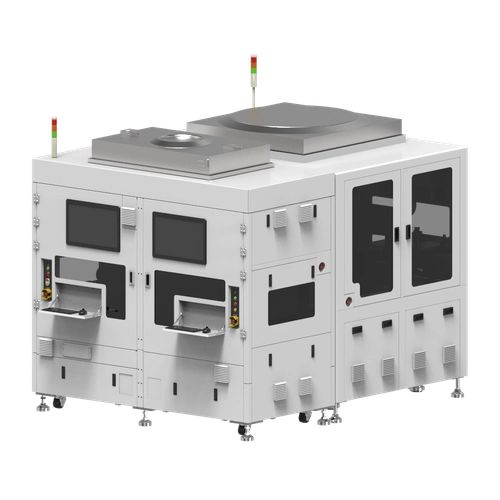

| Title | Dual-mode active align tester |
| Test Item | Active alignment, Dispensing bonding and pre-curing process |
| Test Concept | 2 para AA Site & 4 Shuttle (to minimize cycle time) |
| A/A | Total 6 axis motion control – Sensor part : 4 axis (X, Y, Z, R) – Lens part : 2 axis (Tx, Ty) |
| Chart | Max Chart Size : 875 x 875mm (In condition of Max FOV : 90˚,Max Distance : 50cm, Image ratio : 4:3 or 16:9) |
| Chart Distance : 300~500mm (module to chart distance) | |
| Light Source | Luminance : 2000 Lux (Tunable) |
| Color temperature : 5100K ±200K | |
| OC & Foreign substance light source | 5100 ± 300K , Uniformity : over 90% |
| Collimator Lens | Max FOV : 90˚ (CL400-90D) – optional |
| Vision | Top (2set) Bottom (4set) |
| UV Cure | 4 Head UV Cure |
| Dispensing | Pneumatic Dispenser (2set) |
| Image Grabber | V5FP-Dual (HyVISION) |
| PC / Monitor | PC : 2ea / Monitor : 3ea |
