Description

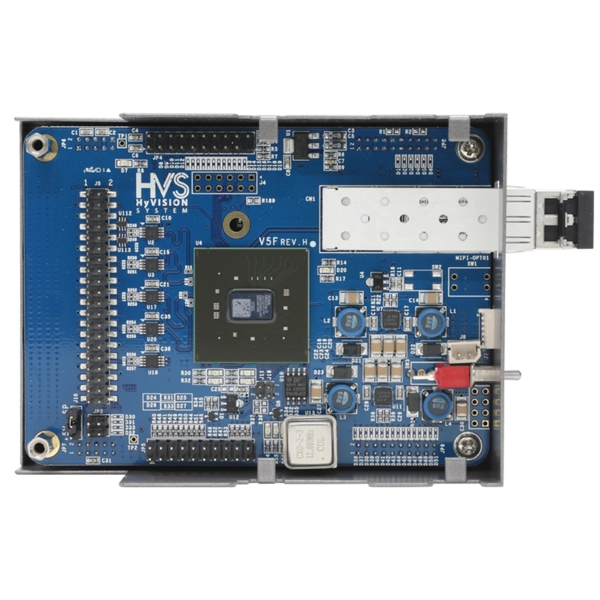

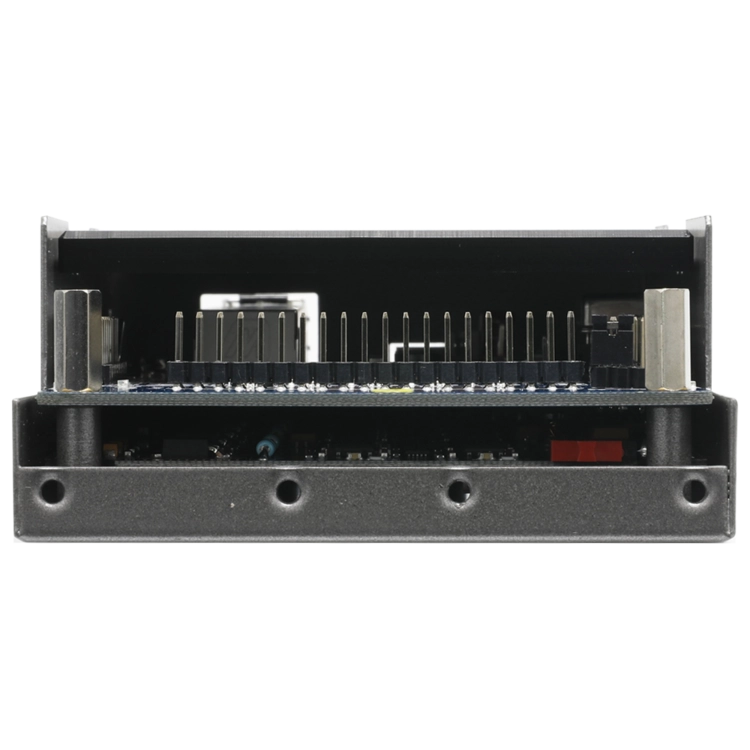

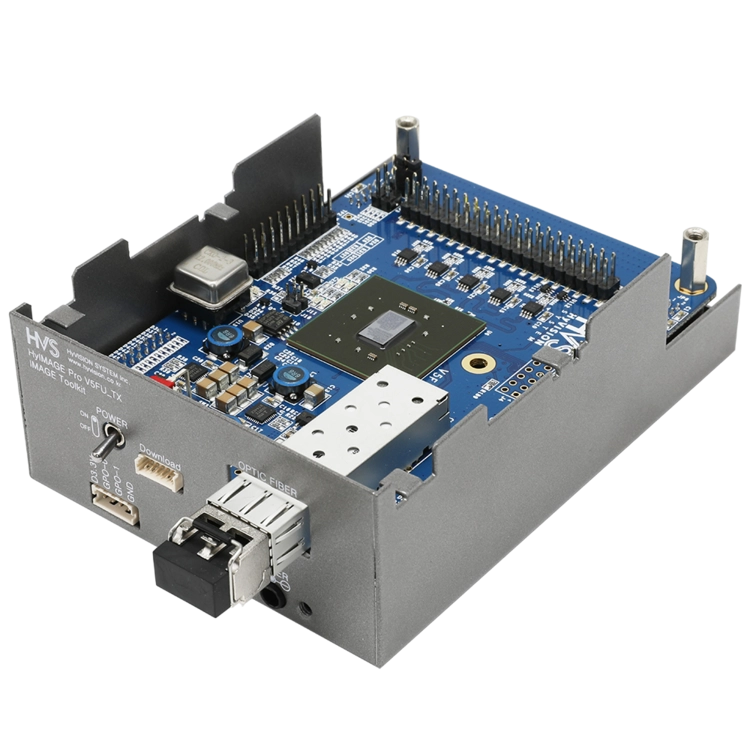

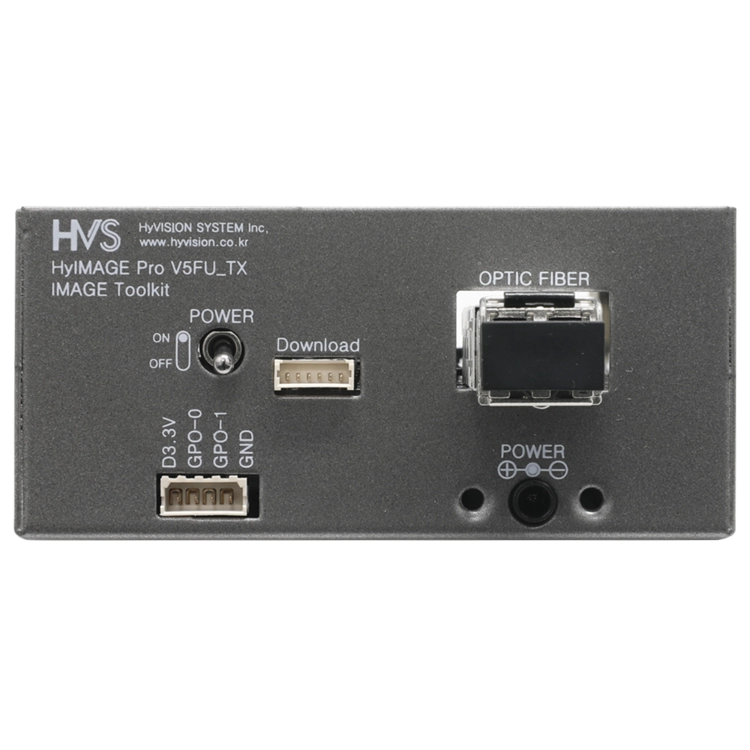

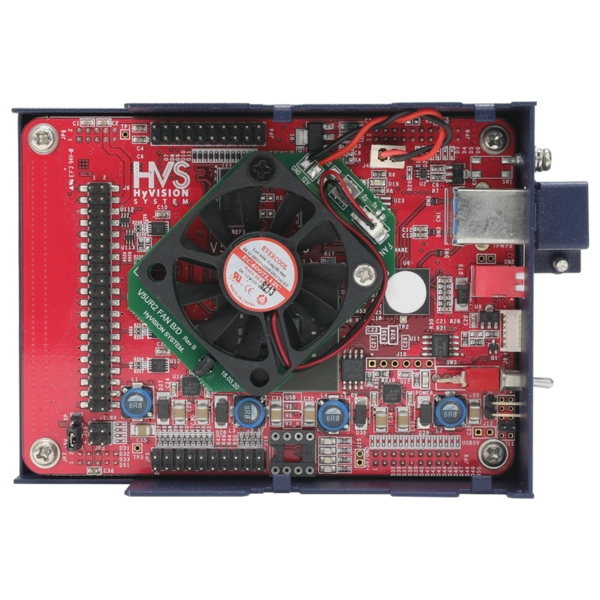

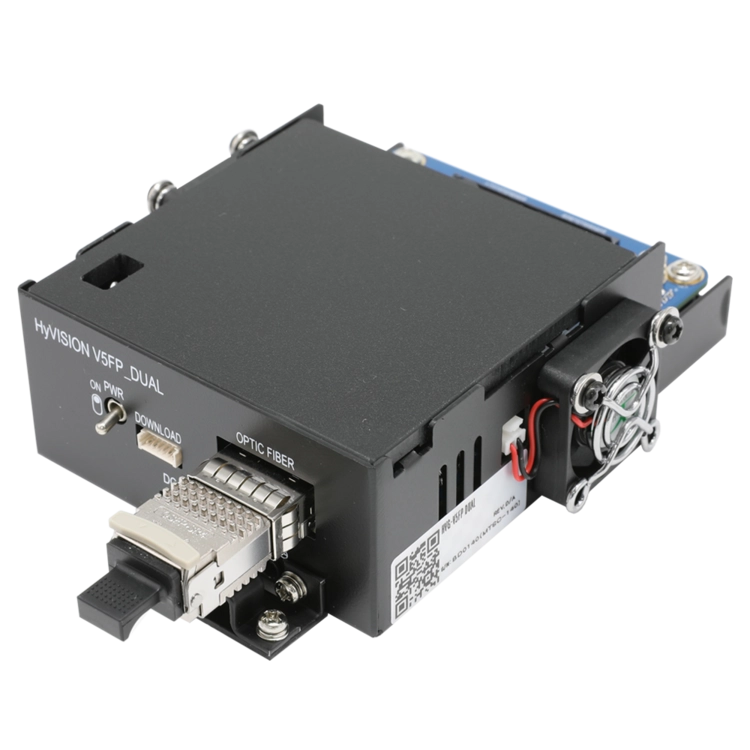

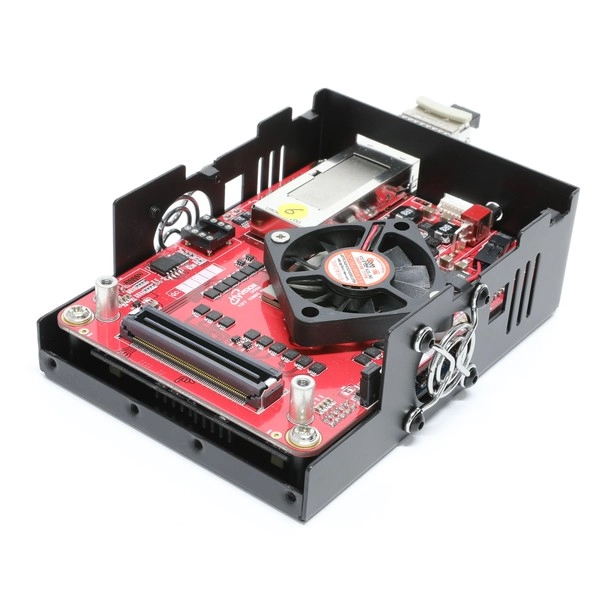

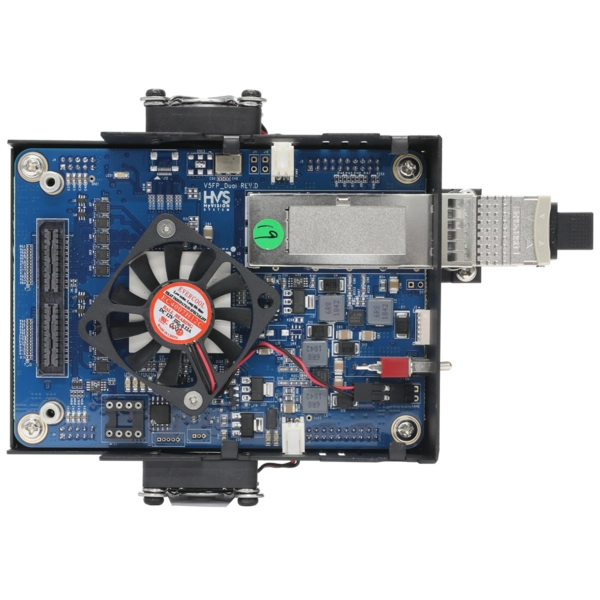

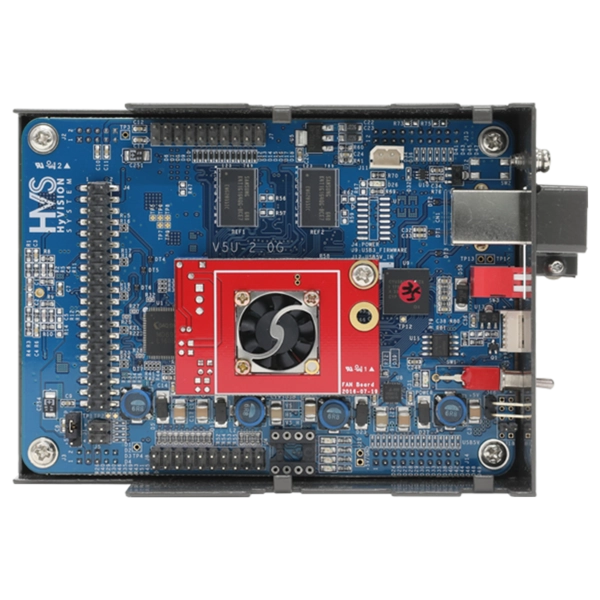

| Item | Description | |
| Tx board | Image Acquisition | MIPI : 1/2/4 Lane (1.5Gbps/lane) |
| Sensor Resolution | Up to 32M pixel | |
| Optic Spec. | Channel : 1ch(Tx/Rx pair) Data rate : 6.25Gbps Wave : 850nm Connector : Duplex LC Fiber : 62.5um multi mode | |
| Sensor Power | 5Ch : Programmable Power (1.0V~5.0V , 0.01V step) 1Ch : Fixed Power (5V or 12V select) | |
| Current Measurement | 5Ch can be measured by 2 type current measurement 1’st Type : up to 2mA for Standby current (0.15uA step) 2’nd Type : up to 400mA for Dynamic current (0.12mA step) | |
| Rx board | PC Interface | PCI Express 4x (up to 800MByte/sec – Based on image data payload) If data rate is larger than 800MByte/sec, Skipping |
| Optic Spec. | Channel : 1ch (Tx/Rx pair) Data rate : 6.25Gbps Wave : 850nm Connector : Duplex LC Fiber : 62.5um multi mode |
V5U-2G | V5U-R2 | V5FP | V5FP-Dual | V5FP-Dual-Combo-V2 | |
|---|---|---|---|---|---|

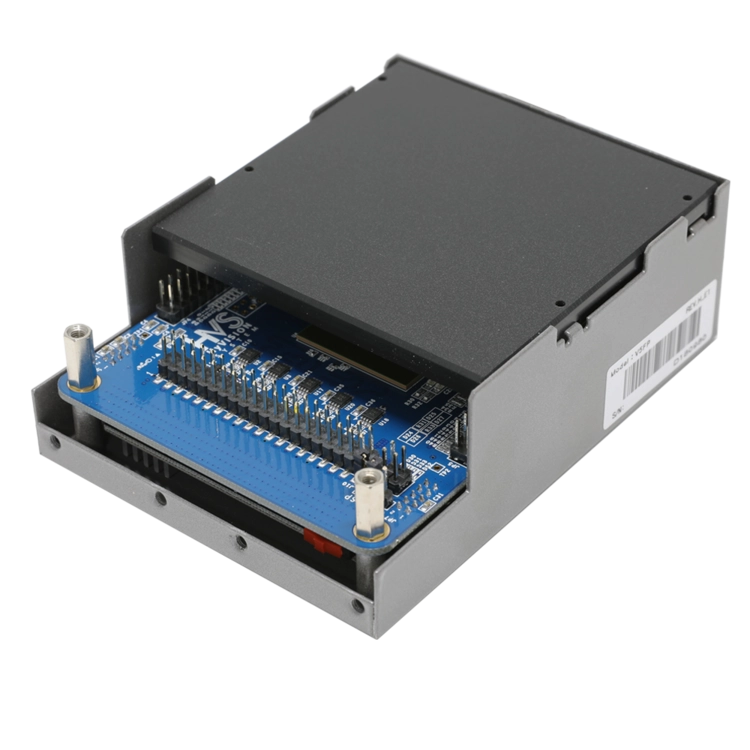

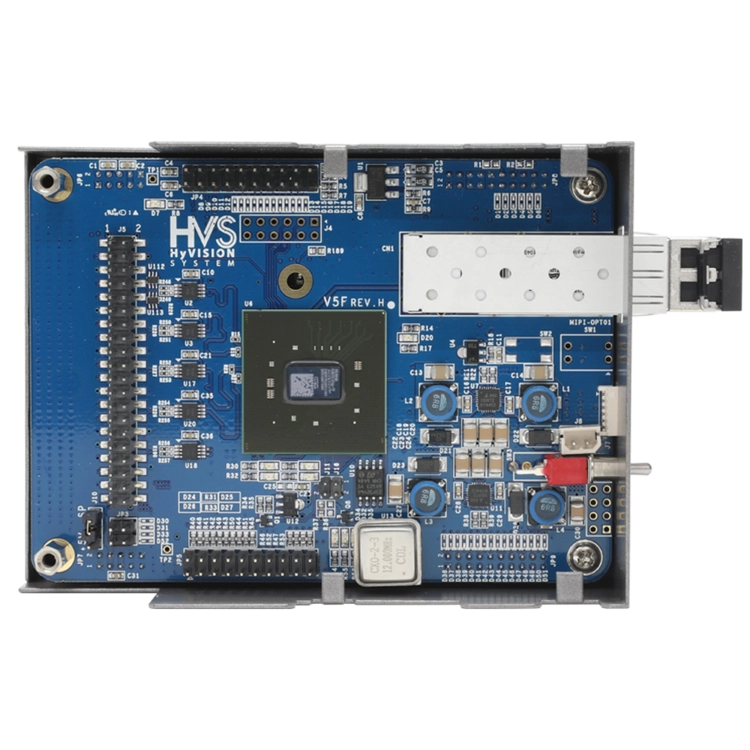

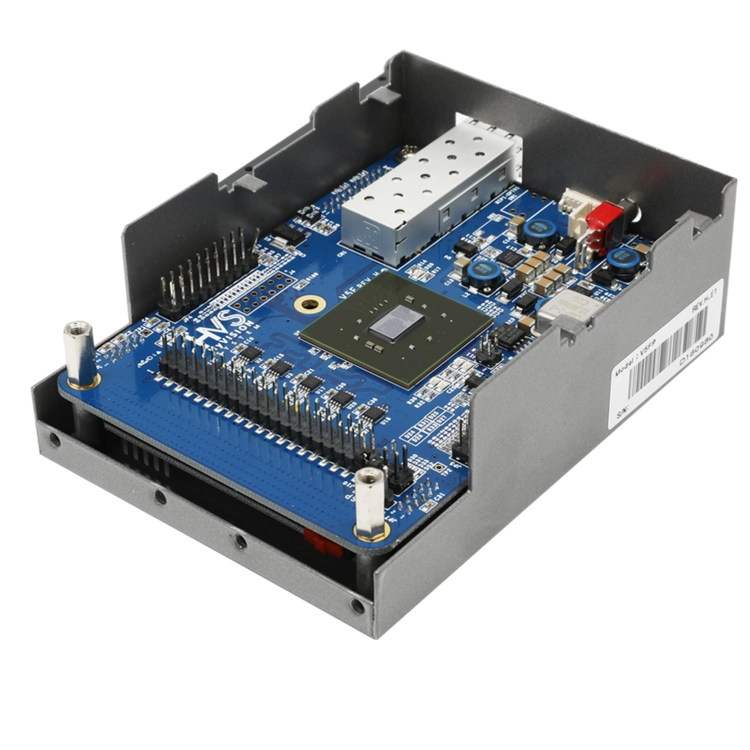

| Image |
|
|
|
|
|
| Dimension(mm) | 114X84X38.5 | 114X84X38.5 | 114X84X39 | 114X94X39 | 114X84X39 |
| MIPI data capturing rate | 2.0Gbps/Lane | 1.5Gbps/Lane | D-PHY : 2.0Gbps/Lane C-PHY : 1.7Gsps/Lane | ||
| PC Interface | USB3.0 (up to 2.5Gbps based on image data payload) | PCLe x4 | PCLe x4 (Gen 2) | PCLe x4 (Gen 3) | |
| Image Sensor Interface | MIPI CSI 1/2/4 Lane, MIPI DSI 1/2/4 Lane (Video mode only) Parallel interface (data ~10bit) | MIPI: 2/4 Lane (TBD : MIPI 1Lane & parallel interface) | Dual MIPI 1/2/4Lane | Dual MIPI D-Phy 1/2/4Lane up to 2.0Gbps/Lane, TBD) Dual MIPI C-Phy 1/2/3Lane (up to 1.7Gsps/Lane) I2C | |
| Internal buffer Memory | DDR2 (1Gbits * 2) | DDR2 (x16) (1Gbits * 2) | DDR3 (1Gbit * 2) | DDR3 * 2 | |
| Sensor Power | 5Ch : Programmable Power (1.0V~5.0V, Resolution: 0.01V, Accuracy: ±0.03V) 1Ch : Fixed Power (6.5V or 12V select) | 8CH : Programmable Power (1.0V~5.0V) each module can use 4ch power I/O Power: Programmable Power(1.5V~3.3V, 0.01V Step, Accuracy: ±1%) | 8CH : Programmable Power (1.0V~5.0V, 0.01V Step, Accuracy: ±1%, Each module can use 4ch power) | ||
| Current Measurement | 5Ch can be measured by 2 type – 1’st Type : up to 2mA for Standby (Resolution: 0.5uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 400mA for Dynamic (Resolution: 0.5mA , Accuracy: ±5% ) | 5Ch can be measured by 3 type – 1’st Type : up to 500uA for Standby (0.15uA step) – 2’nd Type : up to 5mA for Standby (1.5uA step) – 3’rd Type : up to 400mA for Dynamic (0.12mA step) | 8Ch can be measured by 2 type – 1’st Type : up to 500uA or 5mA for Standby current (Resolution: 0.15uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 400mA for Dynamic current (Resolution: 0.12mA , Accuracy: ±5% ) | 8Ch can be measured by 3 type – 1’st Type : up to 500uA for Standby current (Resolution: 0.15uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 500mA for Standby current (Resolution: 1.5uA , Accuracy: Under 50uA – ±20uA, Over 50uA – ±5% ) – 3’rd Type : up to 400mA for Dynamic current (Resolution: 0.12mA , Accuracy: ±5% | |
| Sensor Clock | Programmable adjust 1KHz ~ 68MHz (Accuracy : ±2%) | Programmable (1M ~ 68Mhz), Jitter & Accuracy : ±2% | |||
| Image Sensor Resolution | Up to 32M Pixel | ||||

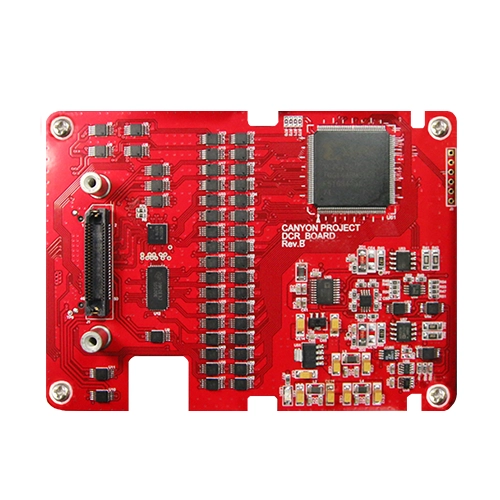

| DC Test | Applicable with mounting DCR Board | ||||
| Sensor IO Power | Programmable adjust 1.5~3.3V (0.1V step, Accuracy : ±0.1V) | ||||
| Item | Description | |
| Tx board | Image Acquisition | MIPI : 1/2/4 Lane (1.5Gbps/lane) |
| Sensor Resolution | Up to 32M pixel | |
| Optic Spec. | Channel : 1ch(Tx/Rx pair) Data rate : 6.25Gbps Wave : 850nm Connector : Duplex LC Fiber : 62.5um multi mode | |
| Sensor Power | 5Ch : Programmable Power (1.0V~5.0V , 0.01V step) 1Ch : Fixed Power (5V or 12V select) | |
| Current Measurement | 5Ch can be measured by 2 type current measurement 1’st Type : up to 2mA for Standby current (0.15uA step) 2’nd Type : up to 400mA for Dynamic current (0.12mA step) | |
| Rx board | PC Interface | PCI Express 4x (up to 800MByte/sec – Based on image data payload) If data rate is larger than 800MByte/sec, Skipping |
| Optic Spec. | Channel : 1ch (Tx/Rx pair) Data rate : 6.25Gbps Wave : 850nm Connector : Duplex LC Fiber : 62.5um multi mode |
V5U-2G | V5U-R2 | V5FP | V5FP-Dual | V5FP-Dual-Combo-V2 | |
|---|---|---|---|---|---|
| Image |
|
|
|
|
|
| Dimension(mm) | 114X84X38.5 | 114X84X38.5 | 114X84X39 | 114X94X39 | 114X84X39 |
| MIPI data capturing rate | 2.0Gbps/Lane | 1.5Gbps/Lane | D-PHY : 2.0Gbps/Lane C-PHY : 1.7Gsps/Lane | ||
| PC Interface | USB3.0 (up to 2.5Gbps based on image data payload) | PCLe x4 | PCLe x4 (Gen 2) | PCLe x4 (Gen 3) | |
| Image Sensor Interface | MIPI CSI 1/2/4 Lane, MIPI DSI 1/2/4 Lane (Video mode only) Parallel interface (data ~10bit) | MIPI: 2/4 Lane (TBD : MIPI 1Lane & parallel interface) | Dual MIPI 1/2/4Lane | Dual MIPI D-Phy 1/2/4Lane up to 2.0Gbps/Lane, TBD) Dual MIPI C-Phy 1/2/3Lane (up to 1.7Gsps/Lane) I2C | |
| Internal buffer Memory | DDR2 (1Gbits * 2) | DDR2 (x16) (1Gbits * 2) | DDR3 (1Gbit * 2) | DDR3 * 2 | |
| Sensor Power | 5Ch : Programmable Power (1.0V~5.0V, Resolution: 0.01V, Accuracy: ±0.03V) 1Ch : Fixed Power (6.5V or 12V select) | 8CH : Programmable Power (1.0V~5.0V) each module can use 4ch power I/O Power: Programmable Power(1.5V~3.3V, 0.01V Step, Accuracy: ±1%) | 8CH : Programmable Power (1.0V~5.0V, 0.01V Step, Accuracy: ±1%, Each module can use 4ch power) | ||
| Current Measurement | 5Ch can be measured by 2 type – 1’st Type : up to 2mA for Standby (Resolution: 0.5uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 400mA for Dynamic (Resolution: 0.5mA , Accuracy: ±5% ) | 5Ch can be measured by 3 type – 1’st Type : up to 500uA for Standby (0.15uA step) – 2’nd Type : up to 5mA for Standby (1.5uA step) – 3’rd Type : up to 400mA for Dynamic (0.12mA step) | 8Ch can be measured by 2 type – 1’st Type : up to 500uA or 5mA for Standby current (Resolution: 0.15uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 400mA for Dynamic current (Resolution: 0.12mA , Accuracy: ±5% ) | 8Ch can be measured by 3 type – 1’st Type : up to 500uA for Standby current (Resolution: 0.15uA , Accuracy: Under 50uA – ±2uA, Over 50uA – ±5% ) – 2’nd Type : up to 500mA for Standby current (Resolution: 1.5uA , Accuracy: Under 50uA – ±20uA, Over 50uA – ±5% ) – 3’rd Type : up to 400mA for Dynamic current (Resolution: 0.12mA , Accuracy: ±5% | |
| Sensor Clock | Programmable adjust 1KHz ~ 68MHz (Accuracy : ±2%) | Programmable (1M ~ 68Mhz), Jitter & Accuracy : ±2% | |||
| Image Sensor Resolution | Up to 32M Pixel | ||||
| DC Test | Applicable with mounting DCR Board | ||||
| Sensor IO Power | Programmable adjust 1.5~3.3V (0.1V step, Accuracy : ±0.1V) | ||||
